Some installation and maintenance photos at University of Kiel and another German site.
** A big thanks to Juergen K. for the photos and recollections.**

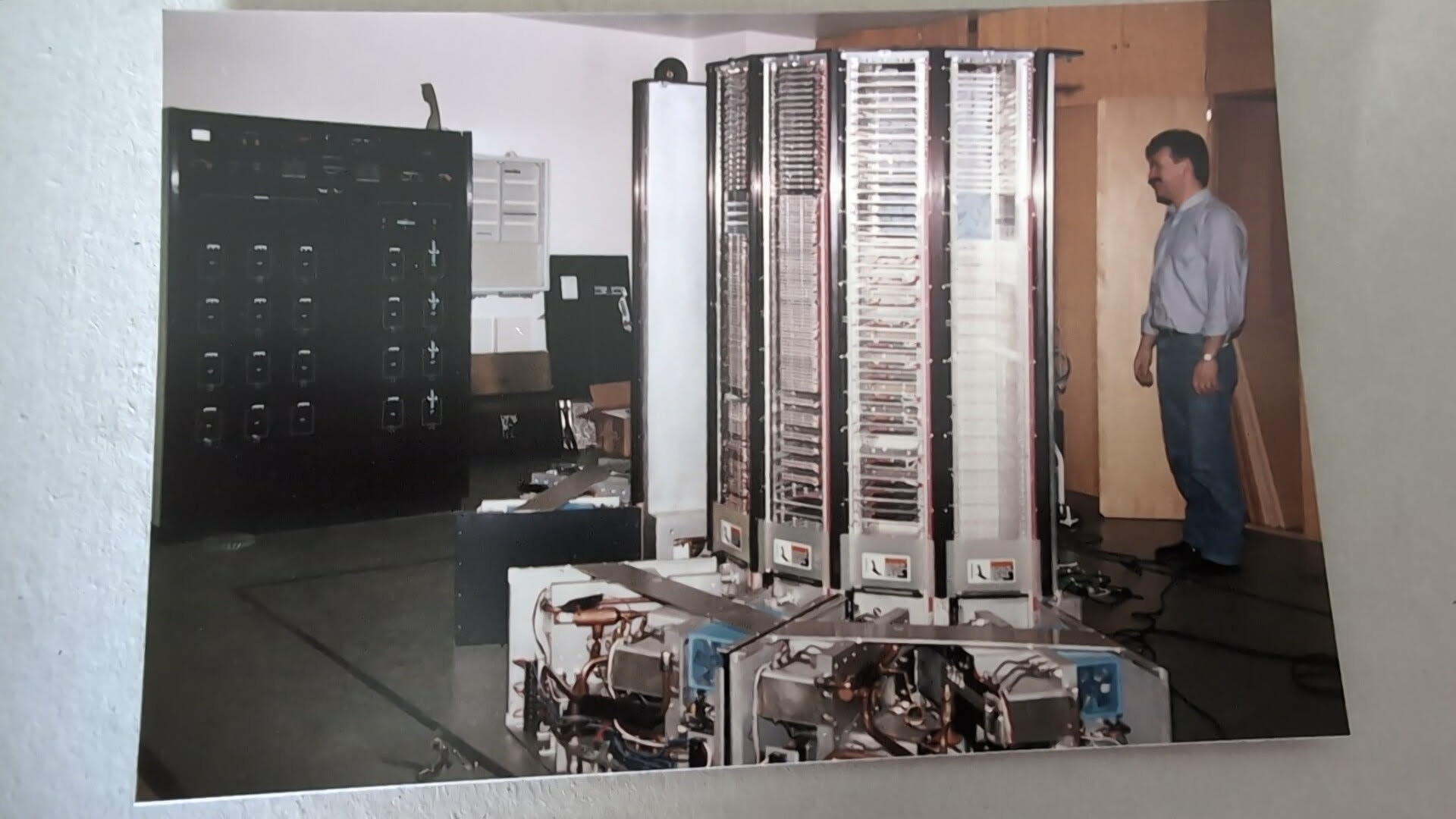

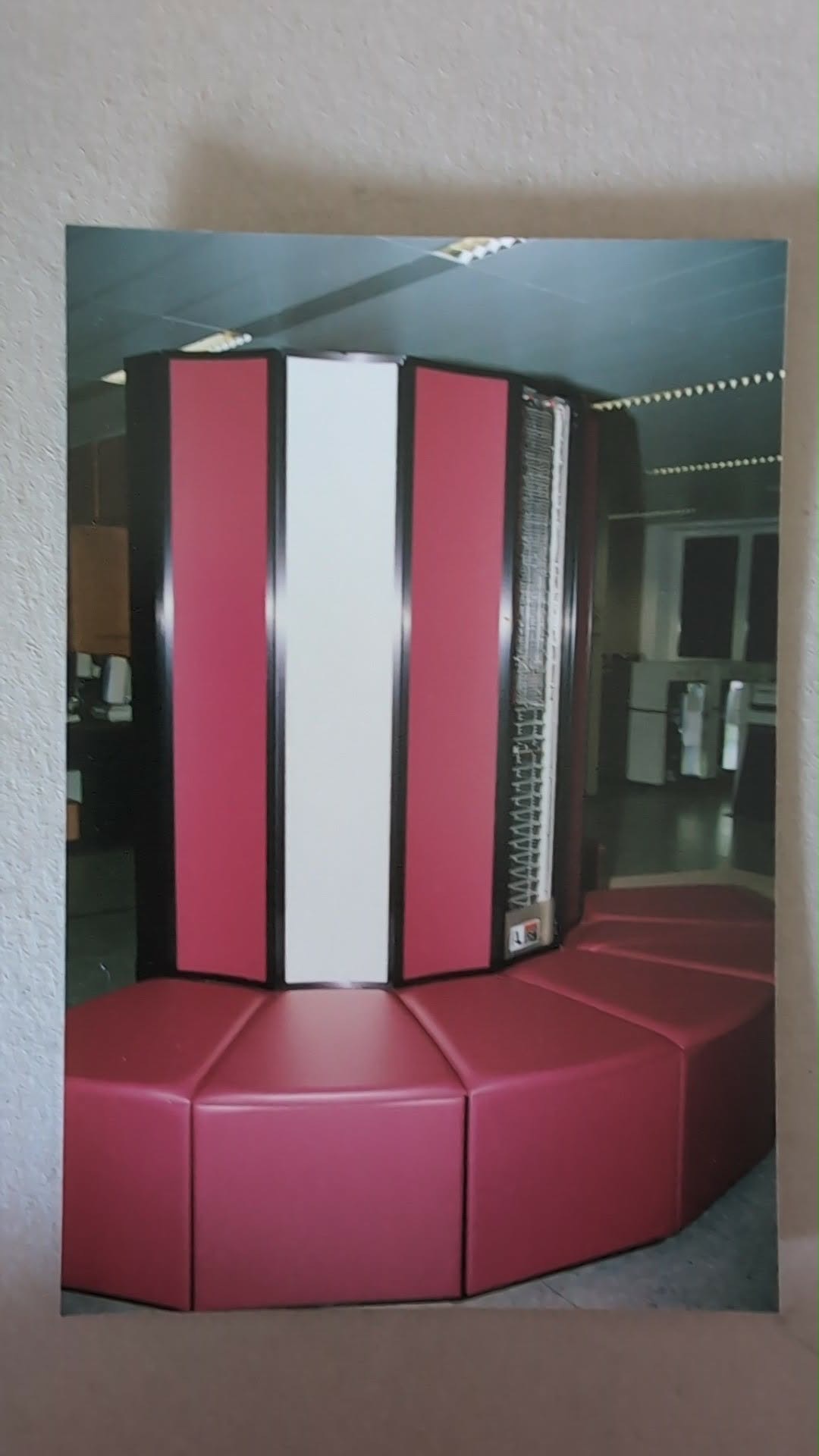

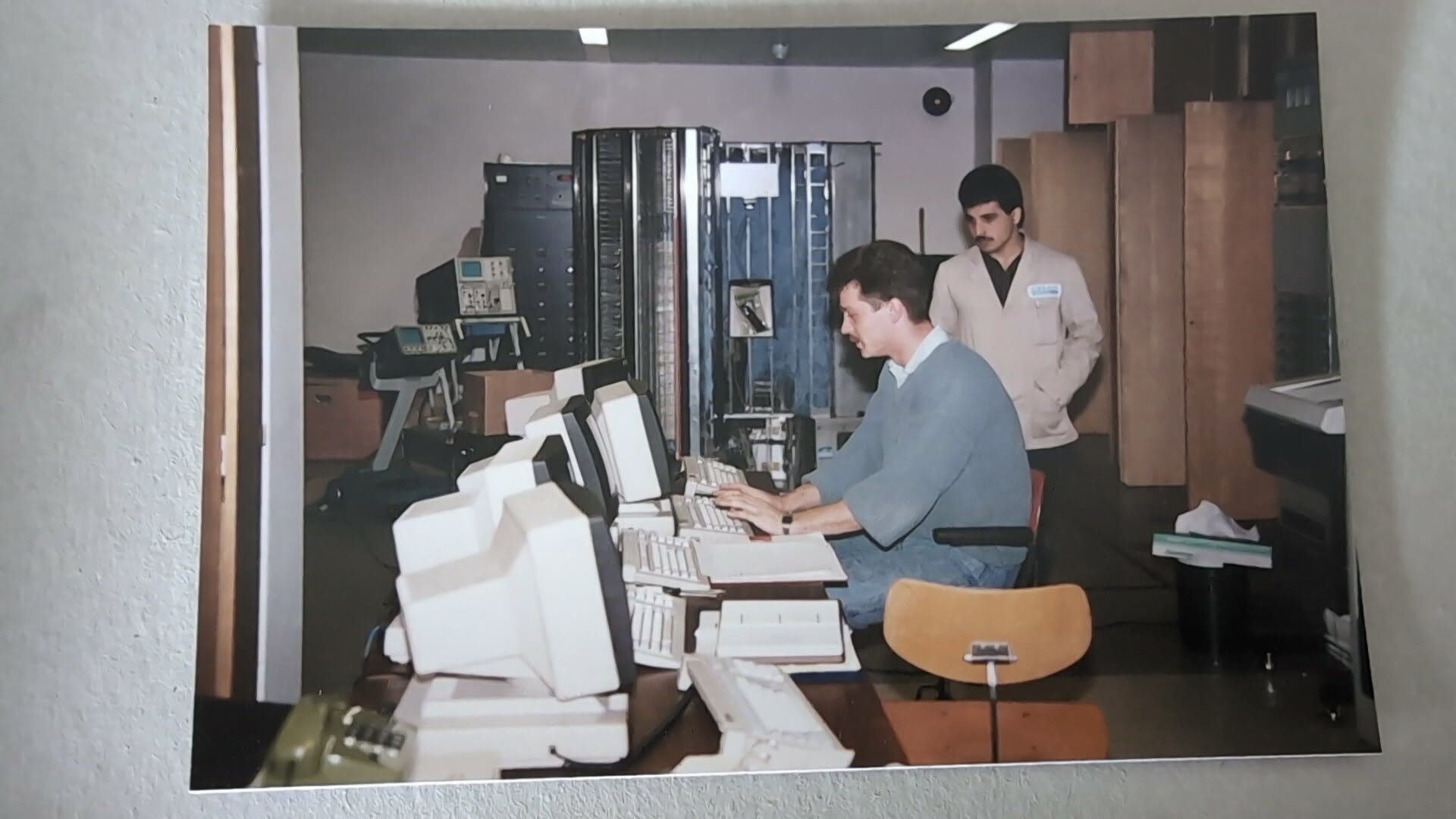

X-MP at University of Kiel
X-MP at University of Kiel

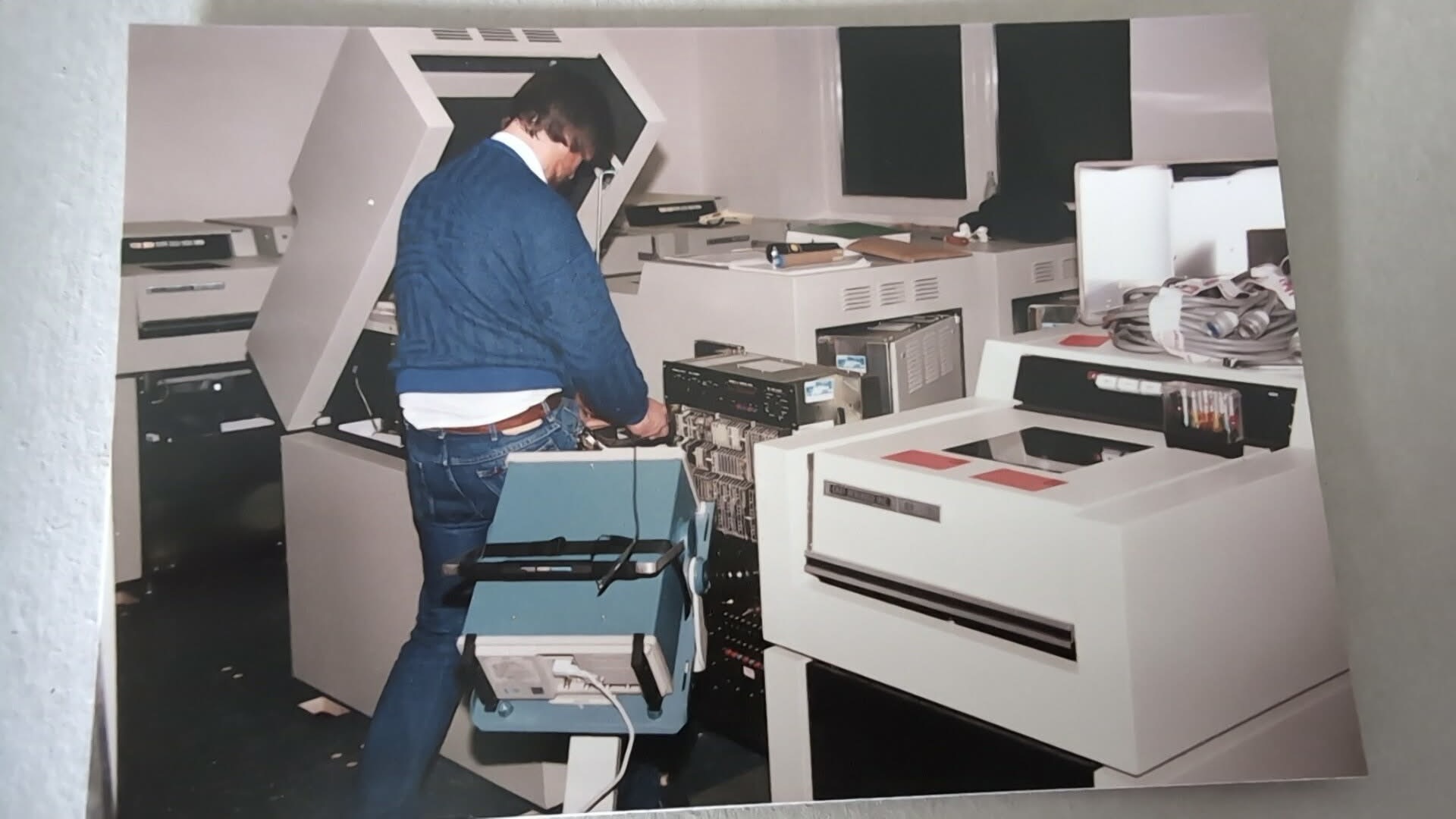

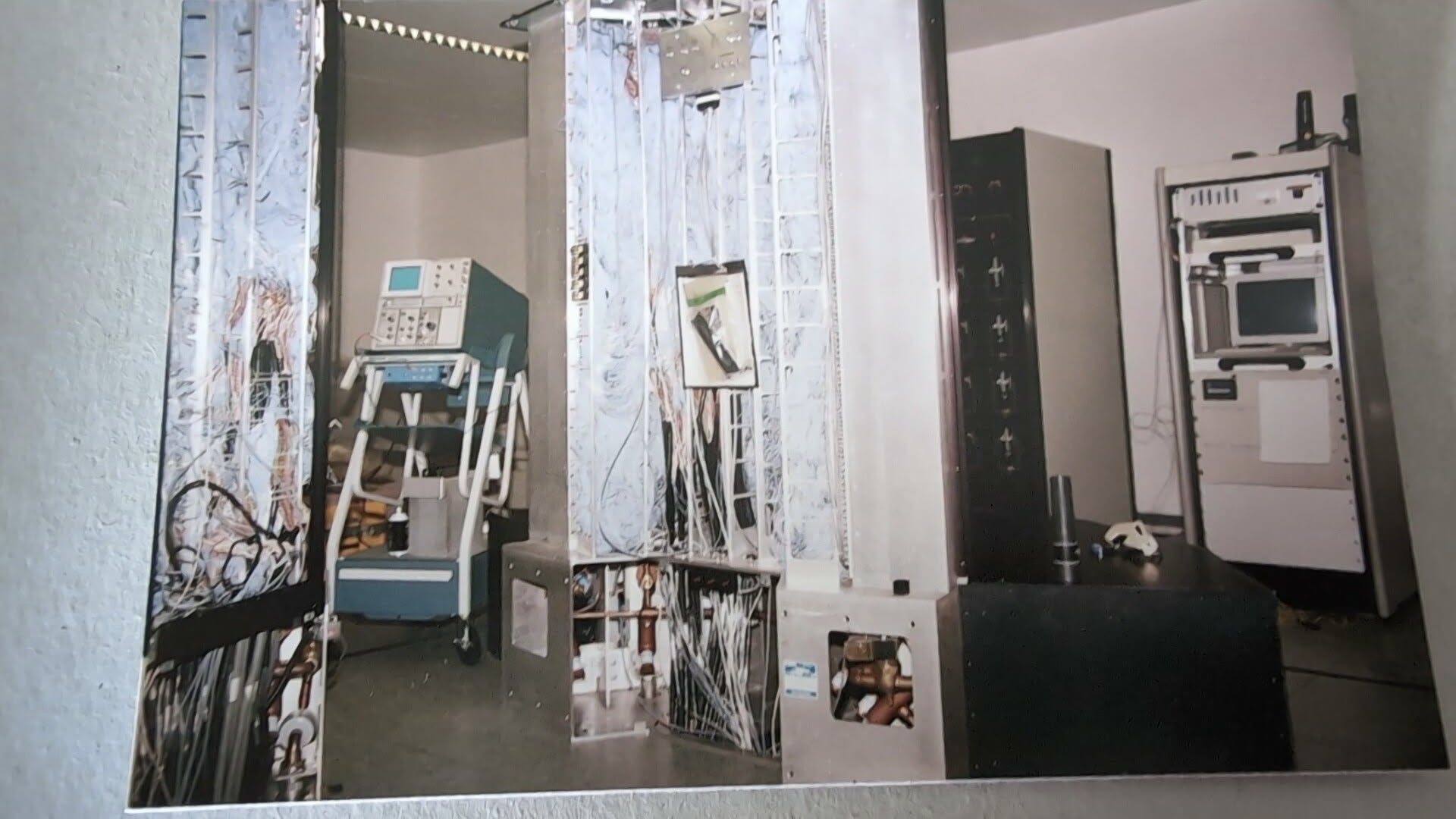

IOP of the X-MP at University of Kiel

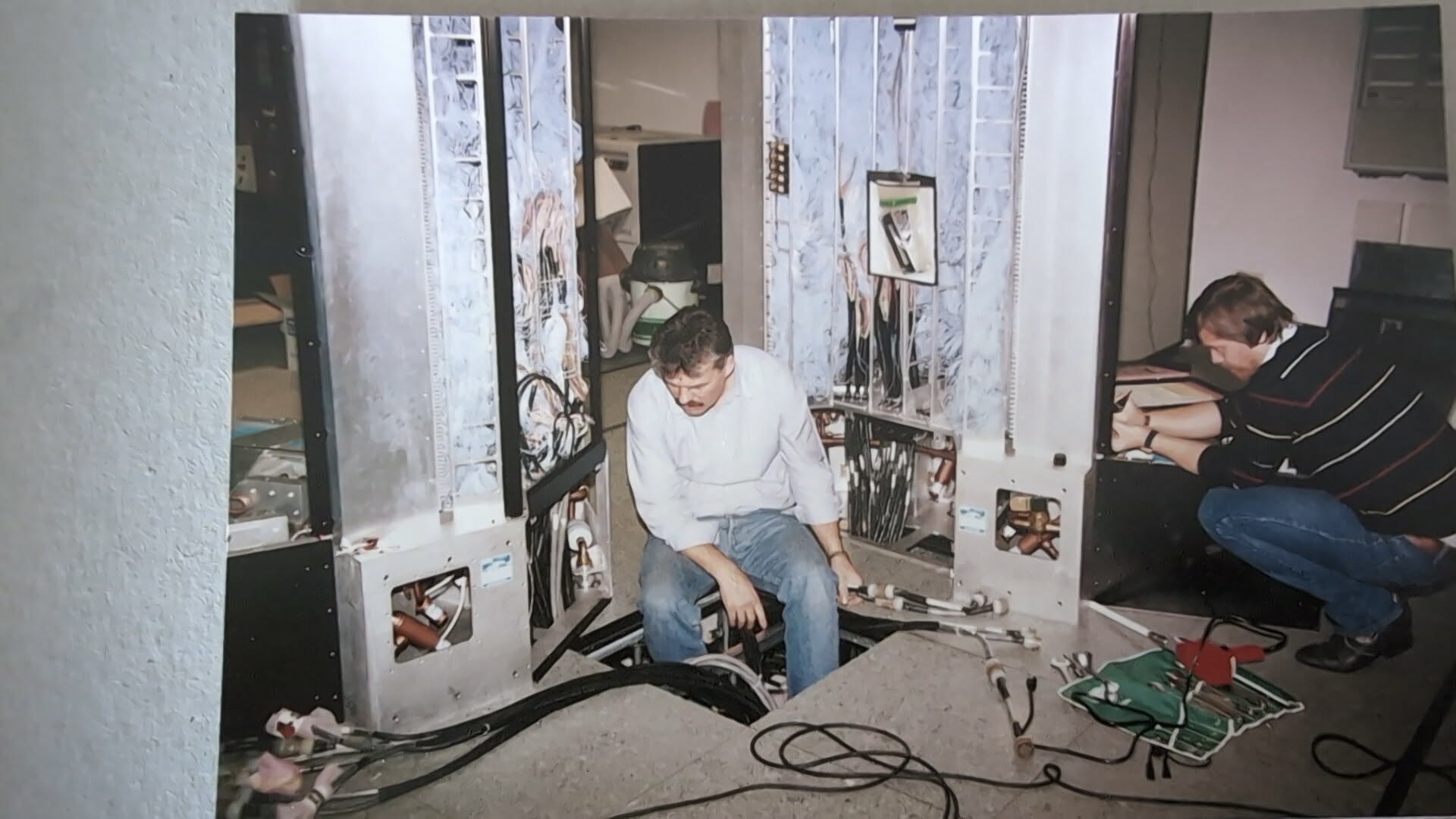

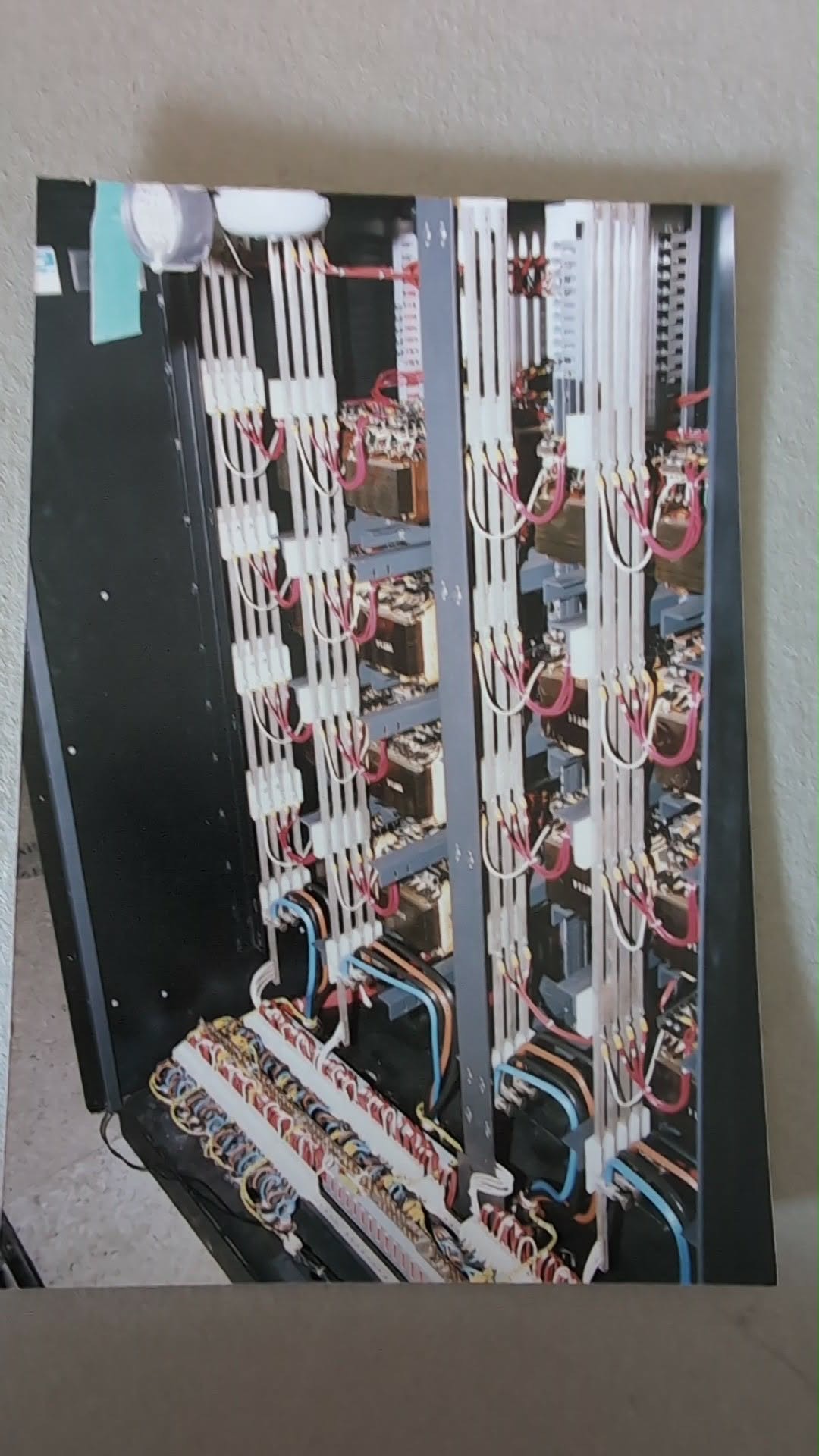

Busbars inside system PDU for Y-MP at University of Kiel

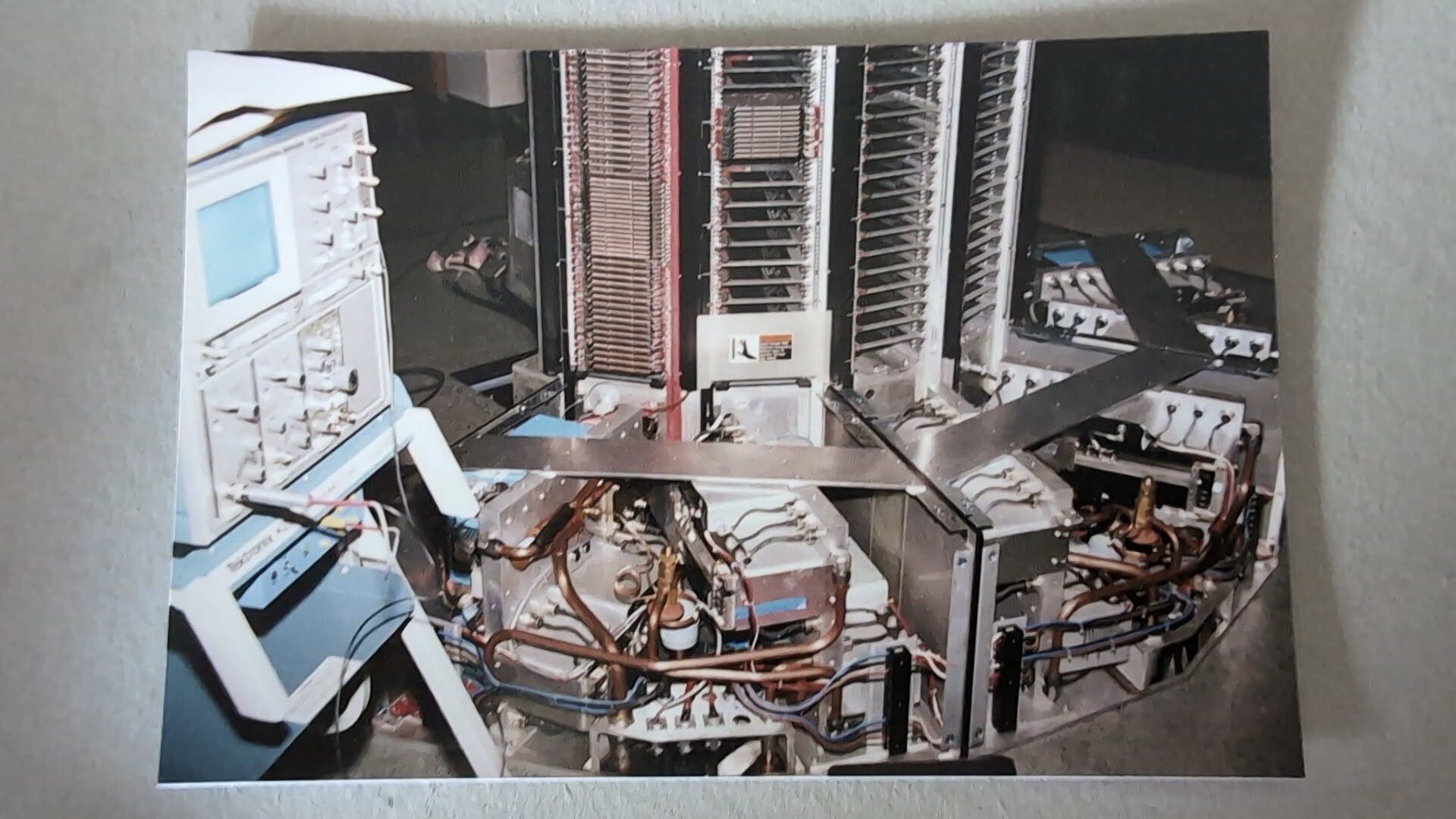

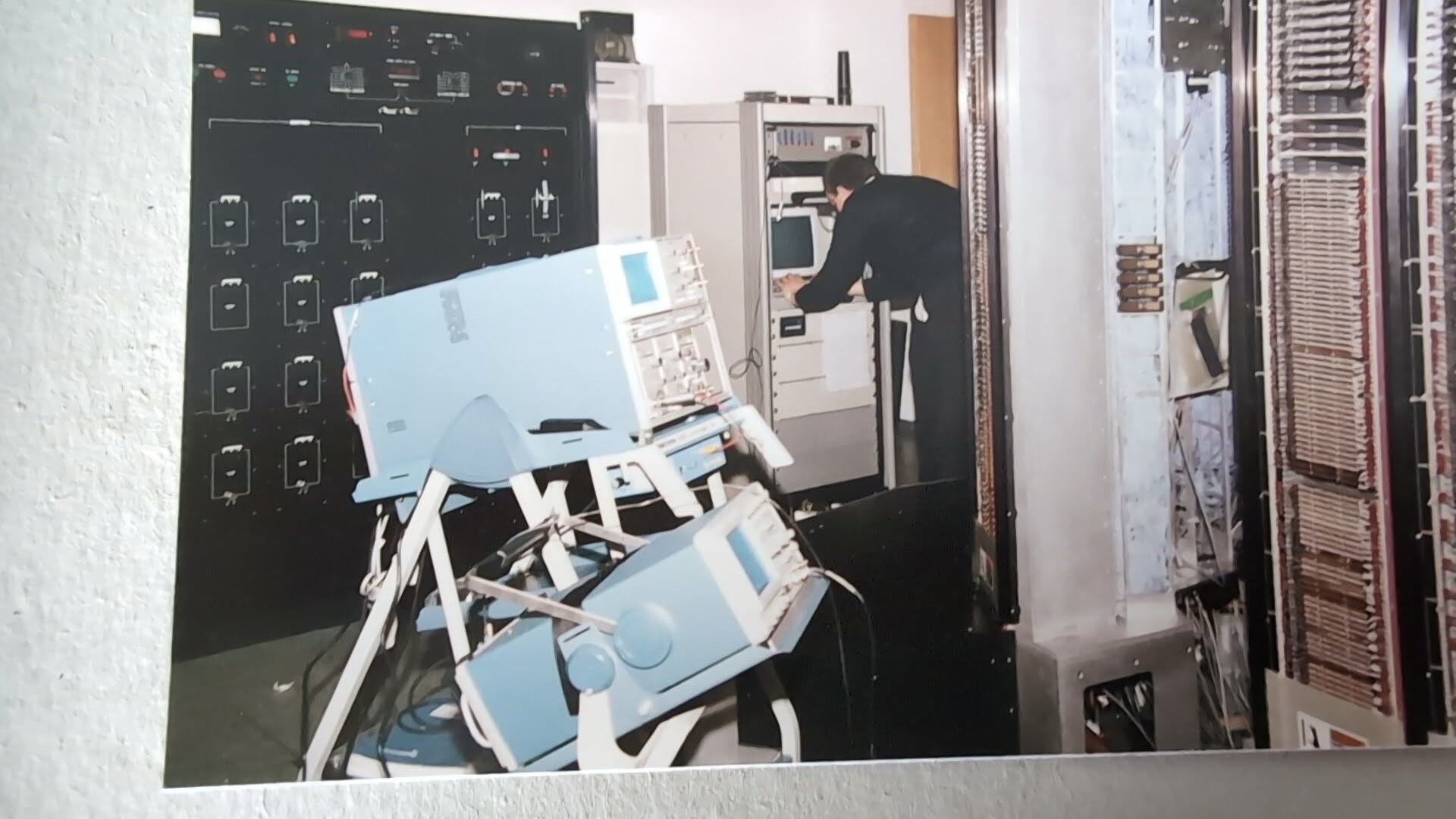

Cray engineer Juergen Schoenekaes using a thermal scanner looking for hot module copper plates and loose wedges.

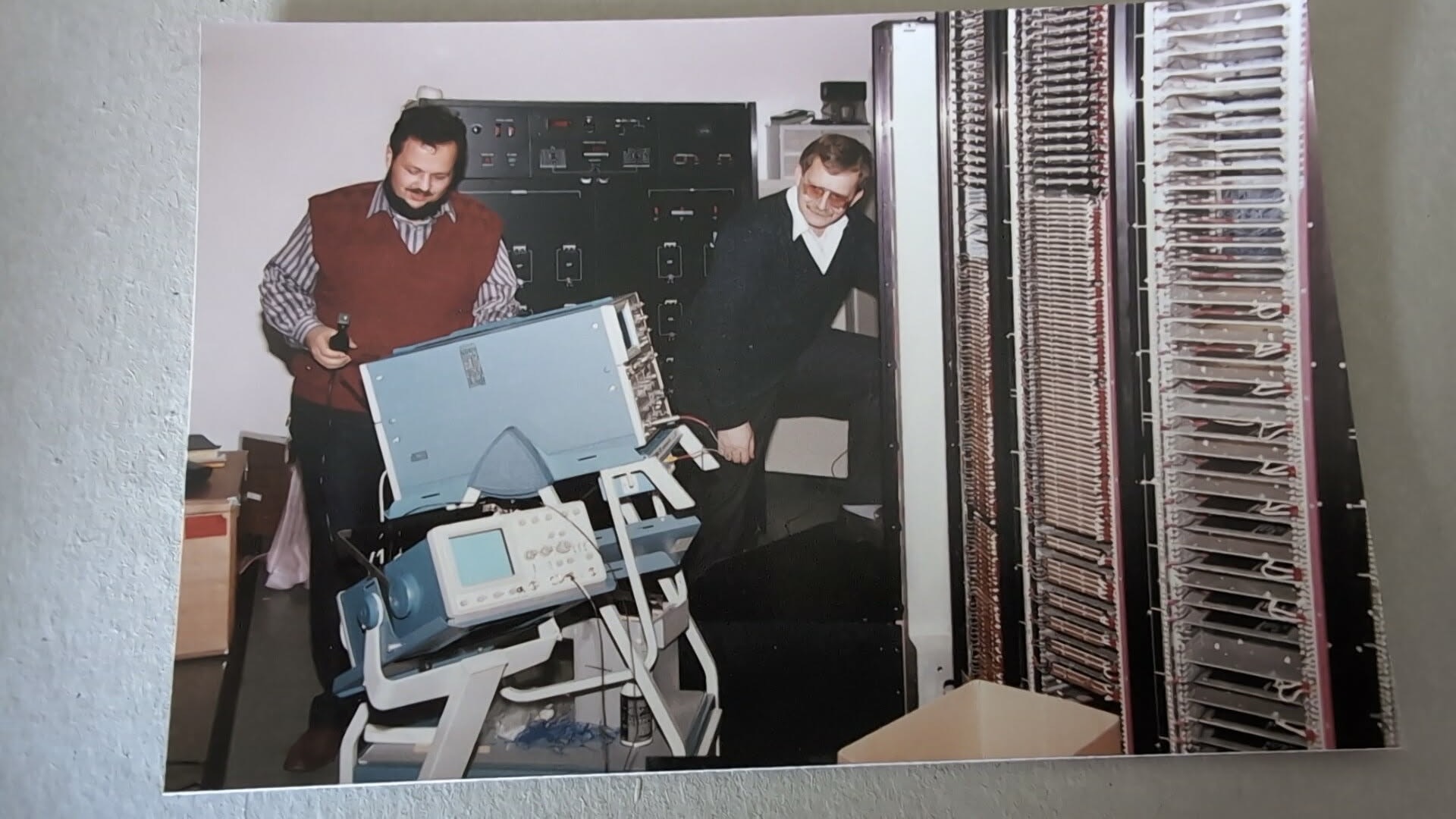

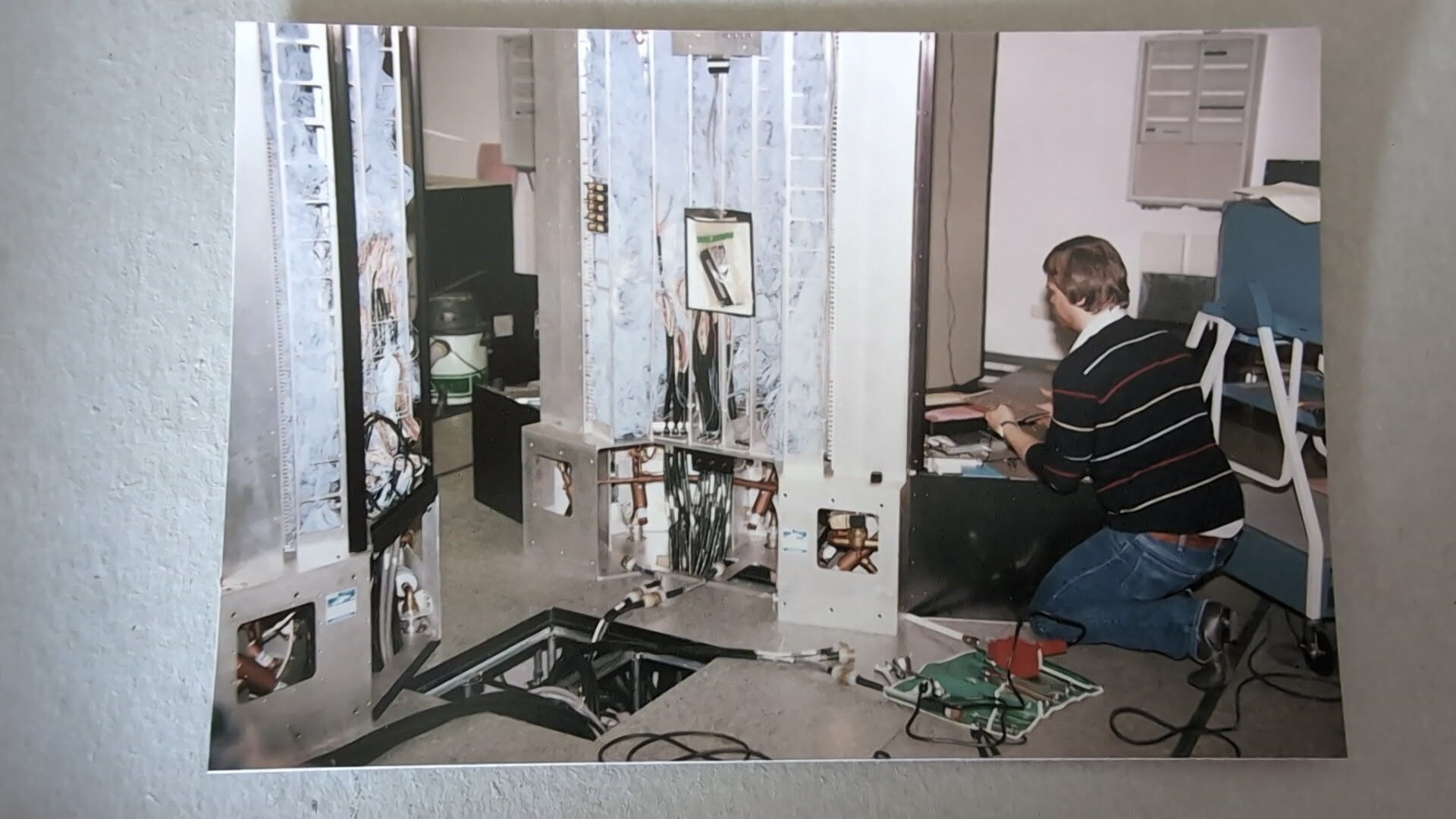

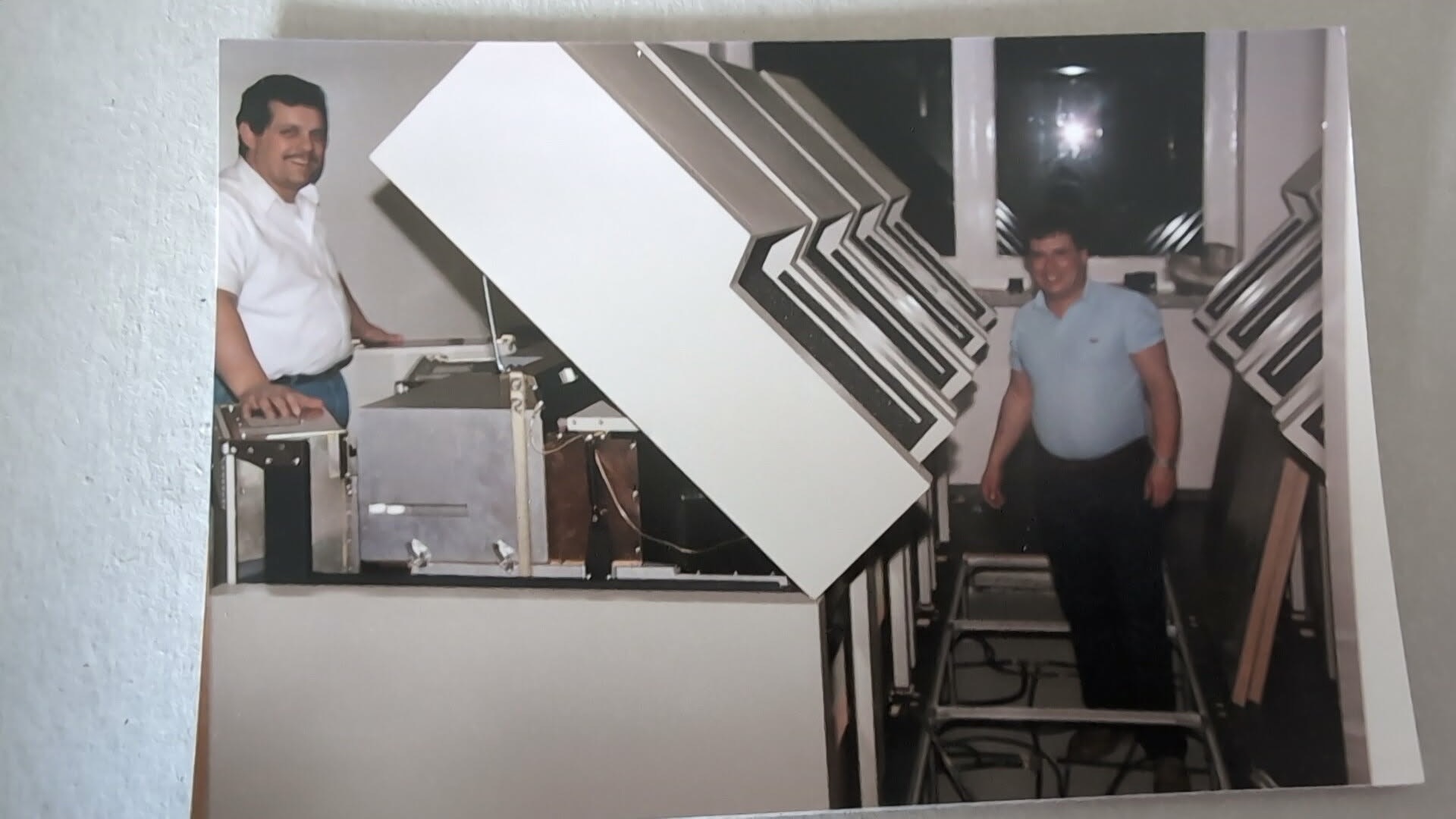

Install in Kiel. Left Kersten Diering from Cray, Right is Juergen
Install in Kiel. Left Kersten Diering from Cray, Right is Juergen

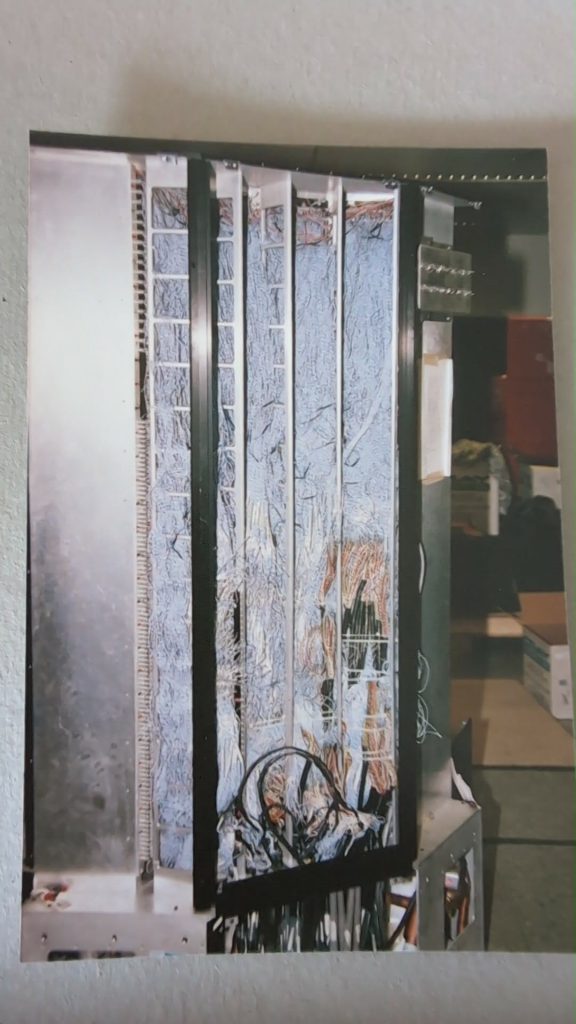

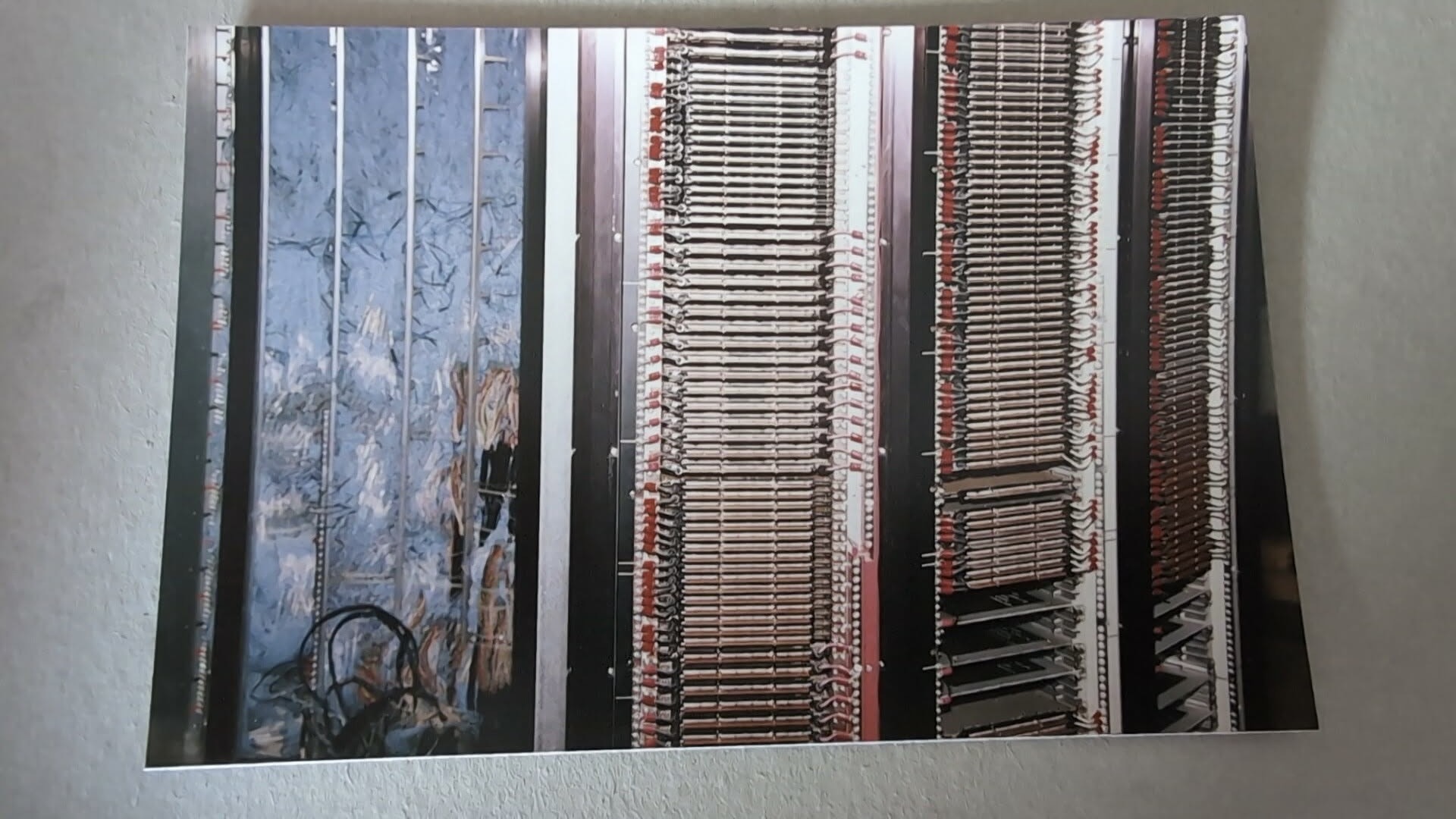

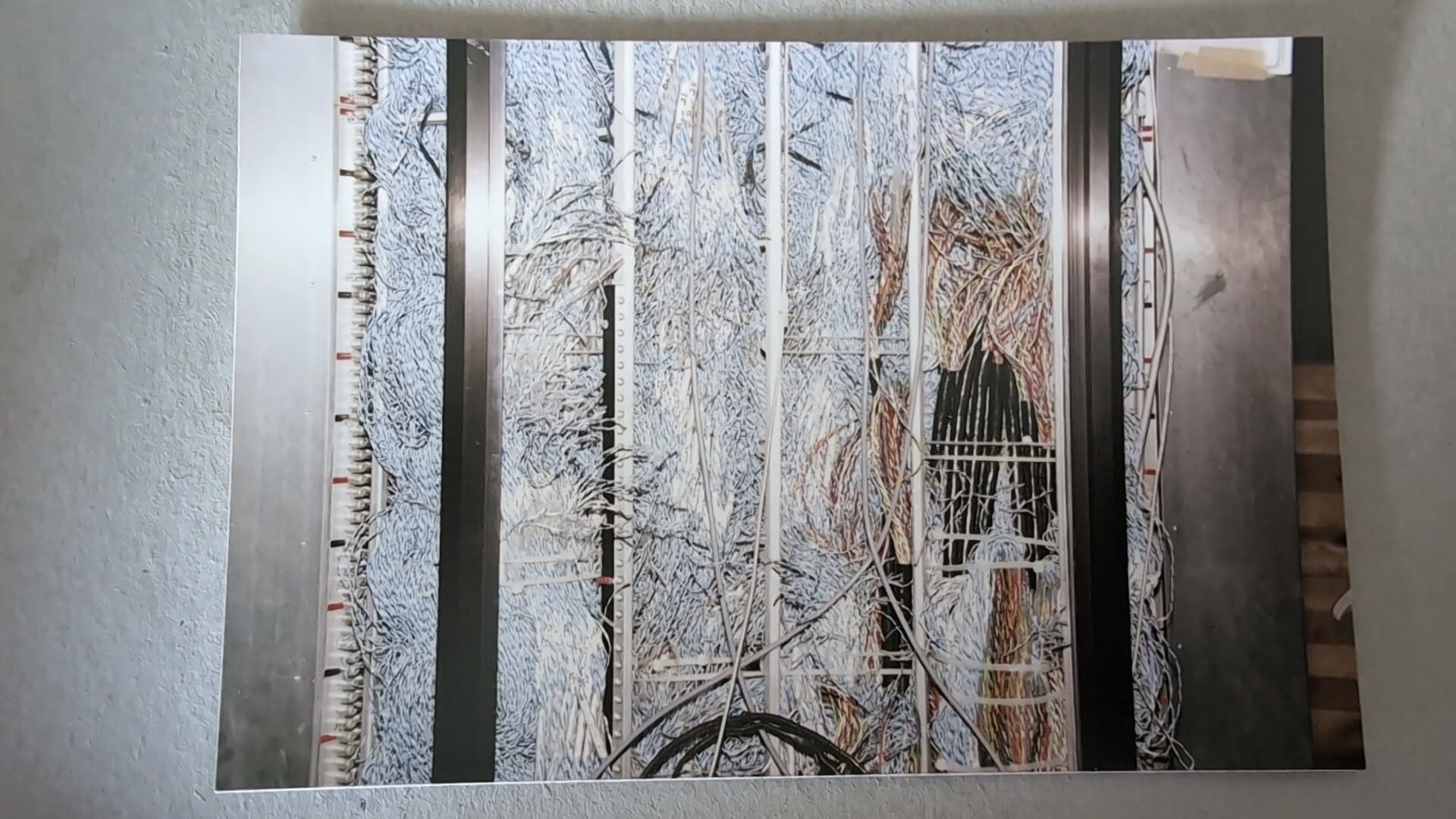

IOP Wire mat
German engineer Olaf and STCO engineer Hasheem.
IOP Wire mat

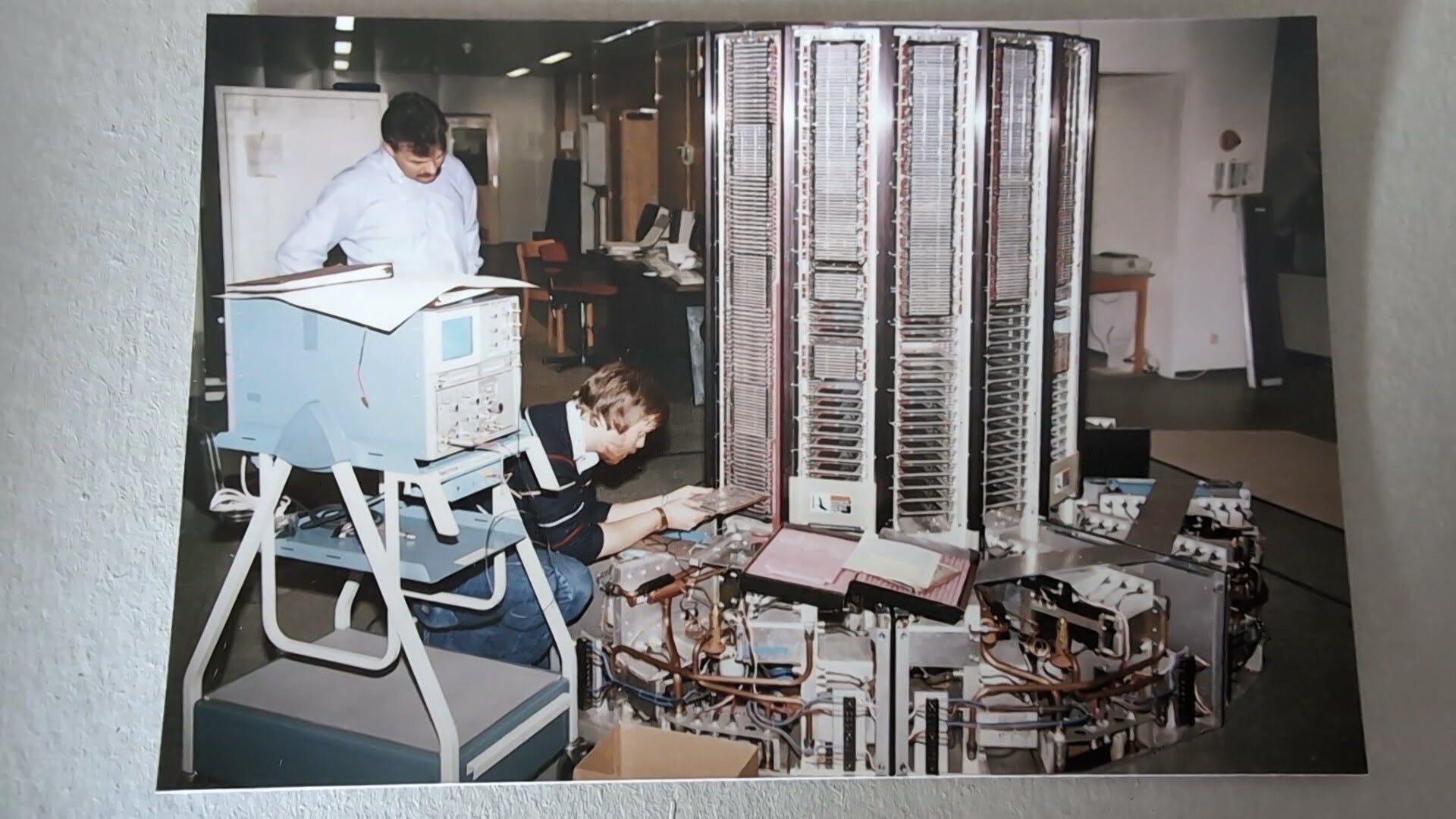

Changing a memory module at Kiel
Memory section of X-MP with open back of IOP in the left side background.
Power supply section open on X-MP at Kiel
our special add-on in the middle.
It has been a device monitoring constantly the exchange signal of the Cray CPUs. If the system crashed no more exchange takes place, a timer counts down and when it reaches zero it dials a prerecorded phone number and leaves a prerecorded voice message that the system appears to be down. Also had smoke detectors and humidity checking. Got used for acceptance times. Developed and constructed by Munich based German Cray engineer Robert Babl
Juergen working on the DD29 disk Drives during the install at University of Kiel

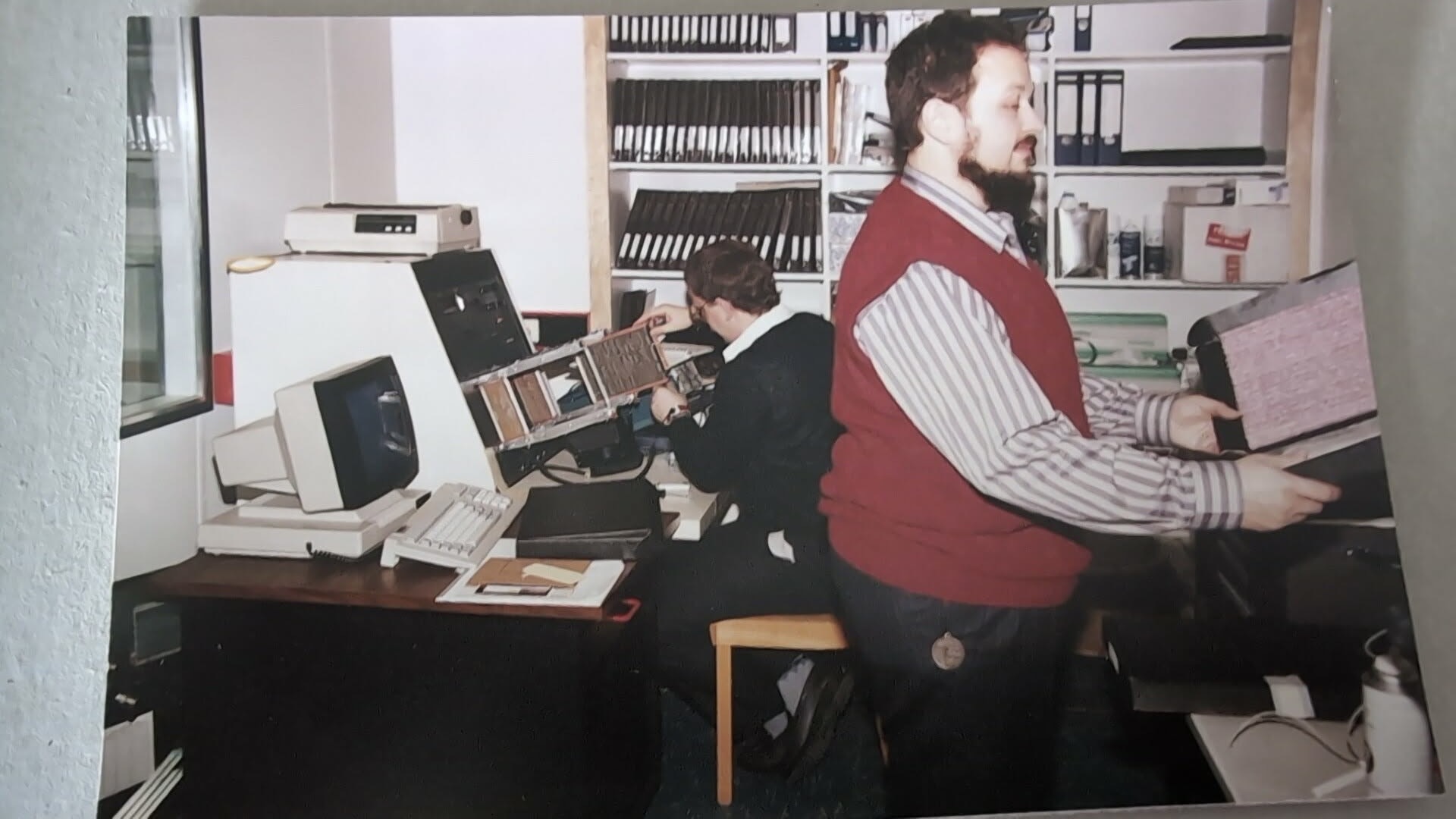

JuergenIn the background German engineer Felske using the module tester for repair of a broken module. In the foreground German engineer Hans-Guenther Mueller.

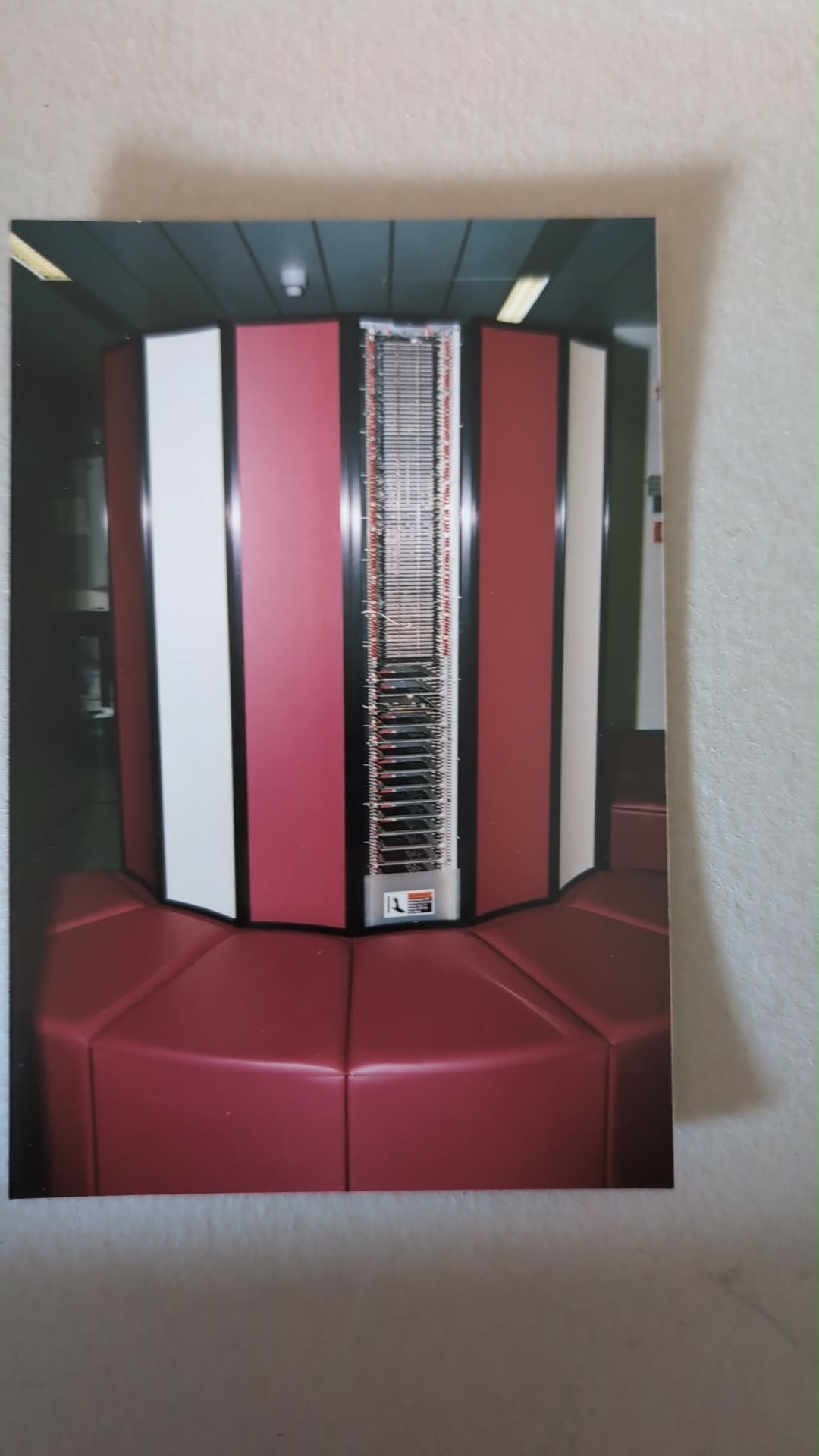

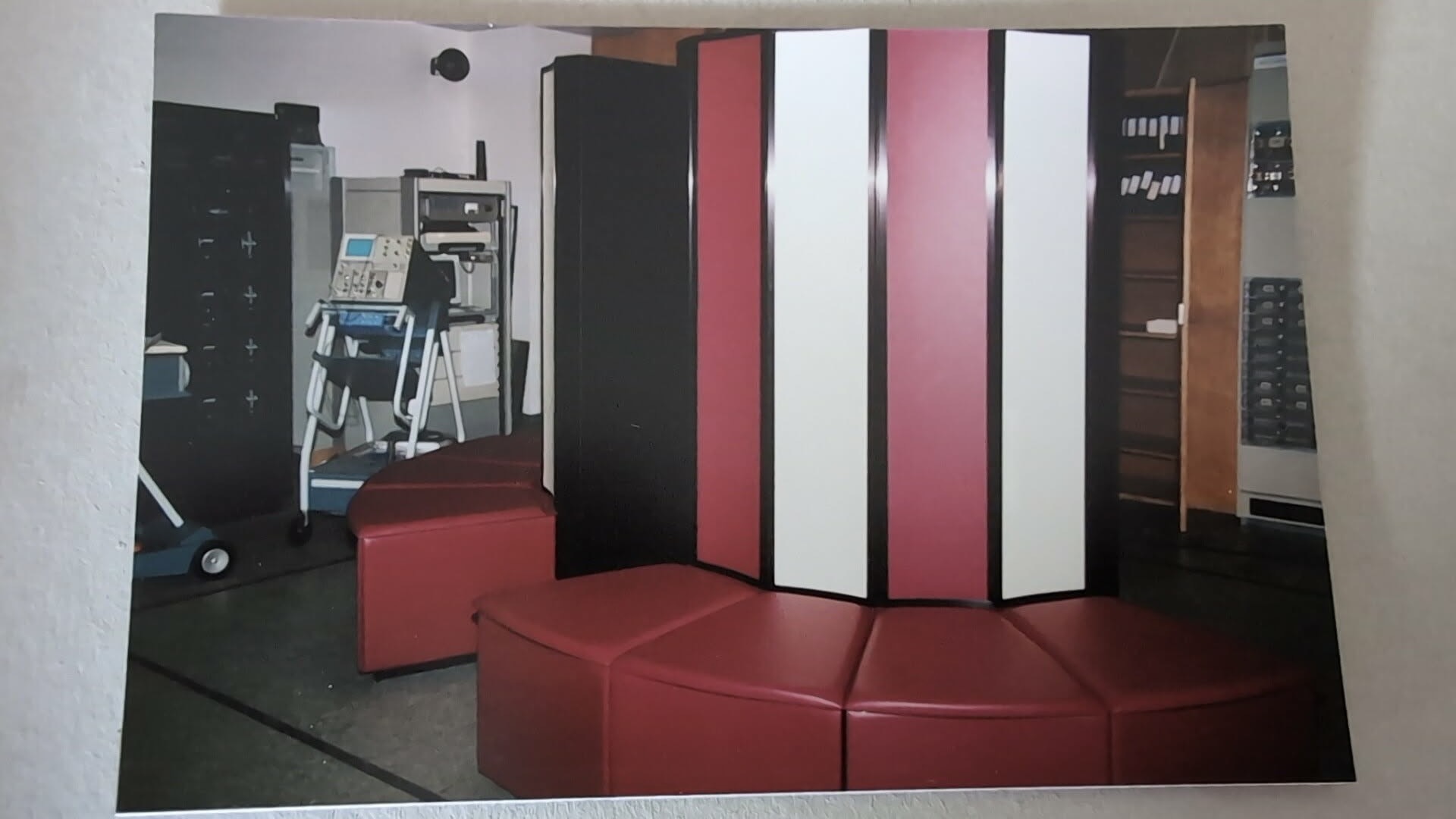

From Left to right : IOP, Scope, Y-MP, Portion of the PDU and system down Warning system.
Loading a memory module into the stack.

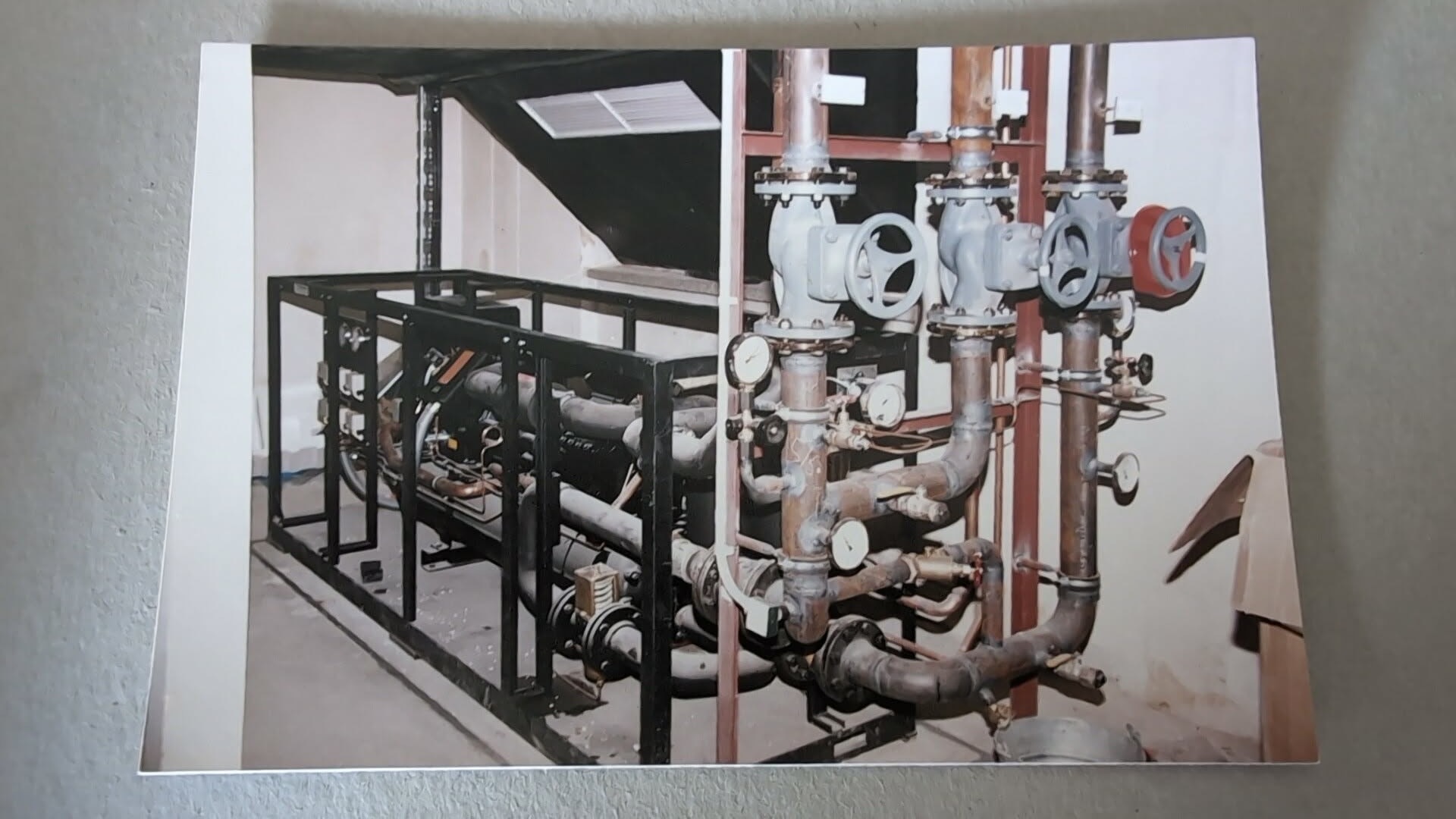

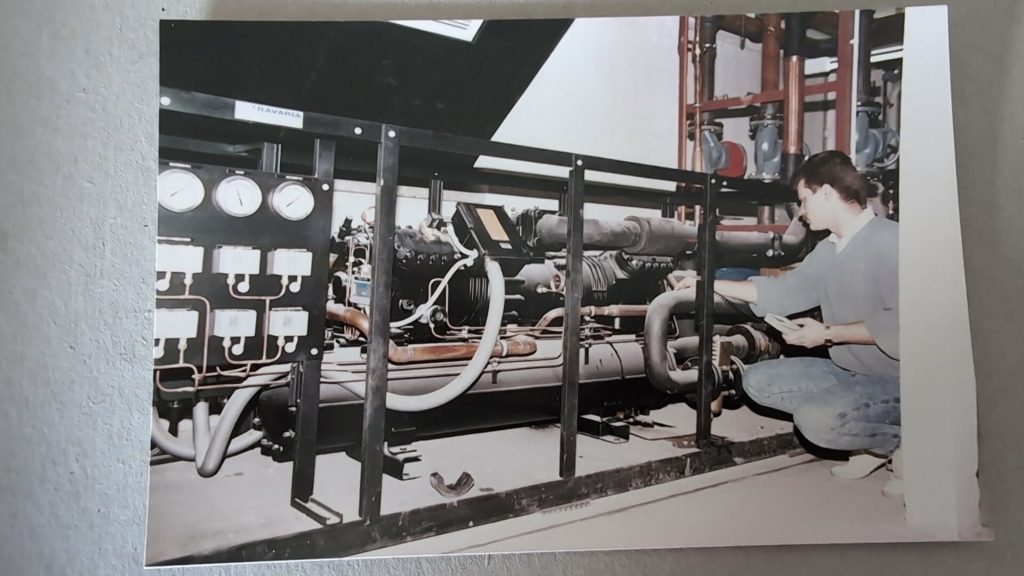

German built refrigerator ( Bavarian company) at Kiel.
German built refrigerator ( Bavarian company) at Kiel.

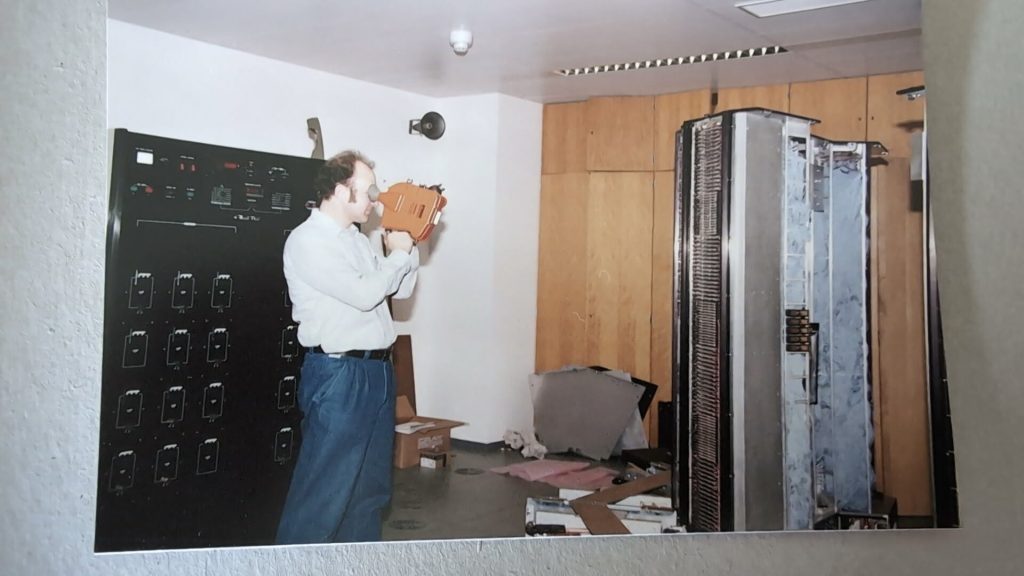

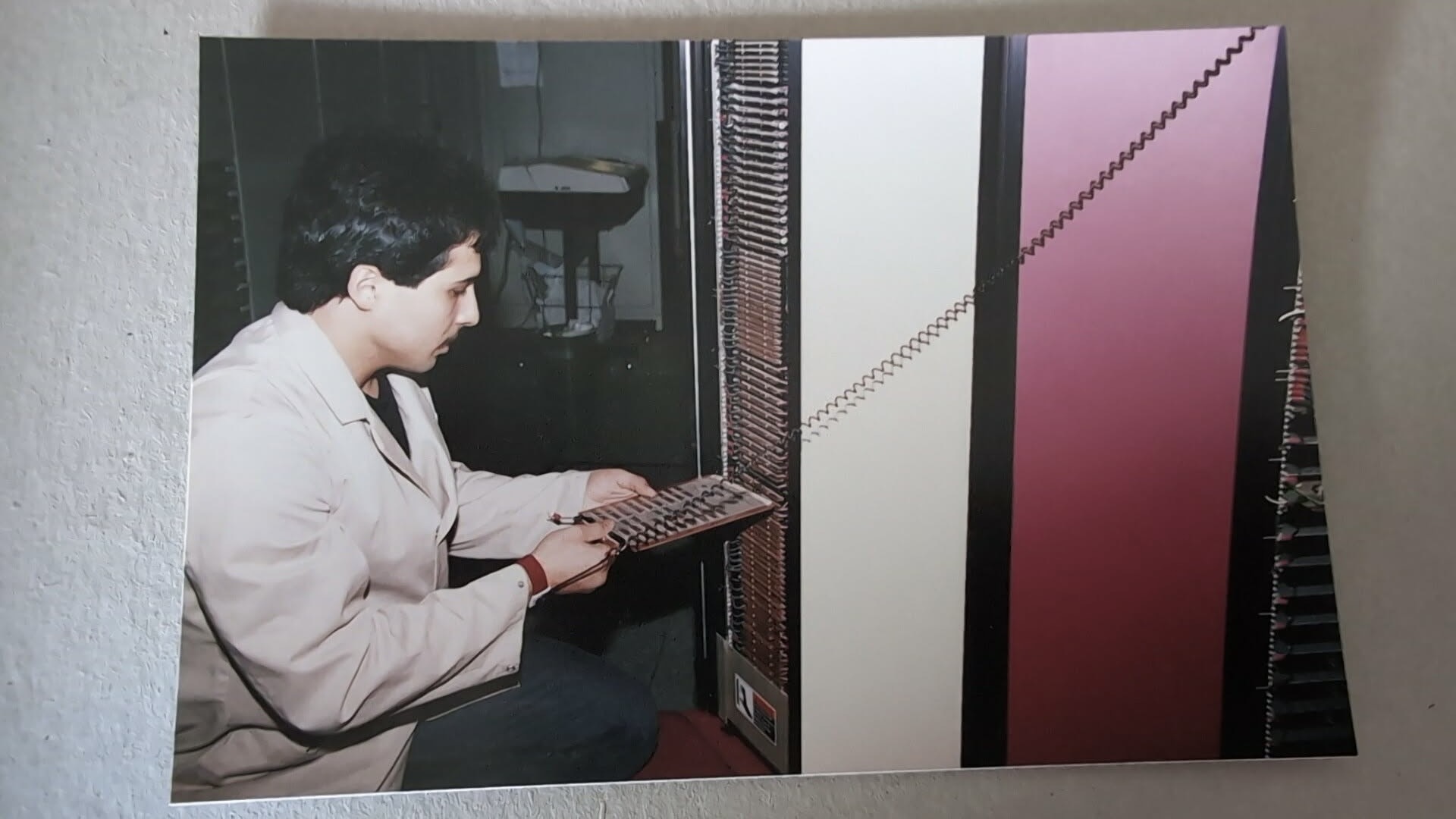

Hans-Guenther has a vibrator in his hand used for shock testing of modules during install and troubleshooting.
DD29s Disk Drives at University of Kiel
Delivery of X-MP 48 at a German site by crane brought through roof of the building possibly SN225
